BaseFeature Class Reference

A basic LC-MS feature. More...

#include <OpenMS/KERNEL/BaseFeature.h>

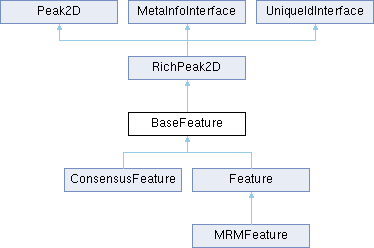

Inheritance diagram for BaseFeature:
[legend]
Collaboration diagram for BaseFeature:
[legend]

Classes

struct  QualityLess
 Compare by quality. More...


Public Member Functions

WidthType getWidth () const
 Non-mutable access to the features width (full width at half max, FWHM) More...

void setWidth (WidthType fwhm)
 Set the width of the feature (FWHM) More...

const ChargeTypegetCharge () const
 Non-mutable access to charge state. More...

void setCharge (const ChargeType &ch)
 Set charge state. More...

BaseFeatureoperator= (const BaseFeature &rhs)=default
 Assignment operator. More...

BaseFeatureoperator= (BaseFeature &&rhs) &=default
 Move Assignment operator. More...

bool operator== (const BaseFeature &rhs) const
 Equality operator. More...

bool operator!= (const BaseFeature &rhs) const
 Inequality operator. More...

AnnotationState getAnnotationState () const
 state of peptide identifications attached to this feature. If one ID has multiple hits, the output depends on the top-hit only More...

Constructors and Destructor

Default constructor

 BaseFeature ()

 BaseFeature (const BaseFeature &feature)=default
 Copy constructor. More...

 BaseFeature (BaseFeature &&feature) noexcept

 BaseFeature (const BaseFeature &rhs, UInt64 map_index)
 Copy constructor with a new map_index. More...

 BaseFeature (const Peak2D &point)
 Constructor from raw data point. More...

 BaseFeature (const RichPeak2D &point)
 Constructor from raw data point with meta information. More...

 BaseFeature (const FeatureHandle &fh)
 Constructor from a featurehandle. More...

 ~BaseFeature () override
 Destructor. More...

Quality methods

Non-mutable access to the overall quality

QualityType getQuality () const

void setQuality (QualityType q)
 Set the overall quality. More...

Functions for dealing with identifications in legacy format

returns a const reference to the PeptideIdentification vector

const std::vector< PeptideIdentification > & getPeptideIdentifications () const

std::vector< PeptideIdentification > & getPeptideIdentifications ()
 returns a mutable reference to the PeptideIdentification vector More...

void setPeptideIdentifications (const std::vector< PeptideIdentification > &peptides)
 sets the PeptideIdentification vector More...

void sortPeptideIdentifications ()
 sorts PeptideIdentifications, assuming they have the same scoreType. More...

Functions for dealing with identifications in new format

has a primary ID (peptide, RNA, compound) been assigned?

bool hasPrimaryID () const

const IdentificationData::IdentifiedMoleculegetPrimaryID () const
 Return the primary ID (peptide, RNA, compound) assigned to this feature. More...

void clearPrimaryID ()
 clear any primary ID that was assigned More...

void setPrimaryID (const IdentificationData::IdentifiedMolecule &id)
 set the primary ID (peptide, RNA, compound) for this feature More...

const std::set< IdentificationData::ObservationMatchRef > & getIDMatches () const
 immutable access to the set of matches (e.g. PSMs) with IDs for this feature More...

std::set< IdentificationData::ObservationMatchRef > & getIDMatches ()
 mutable access to the set of matches (e.g. PSMs) with IDs for this feature More...

void addIDMatch (IdentificationData::ObservationMatchRef ref)
 add an ID match (e.g. PSM) for this feature More...

void updateIDReferences (const IdentificationData::RefTranslator &trans)
 Update ID references (primary ID, matches) for this feature. More...

- Public Member Functions inherited from RichPeak2D
 RichPeak2D ()
 Default constructor. More...

 RichPeak2D (const RichPeak2D &p)=default
 Copy constructor. More...

 RichPeak2D (const Peak2D &p)
 Constructor from Peak2D. More...

 RichPeak2D (const PositionType &pos, const IntensityType in)
 Member constructor. More...

 RichPeak2D (RichPeak2D &&p)=default
 Move constructor. More...

 ~RichPeak2D () override
 Destructor. More...

RichPeak2Doperator= (const RichPeak2D &rhs)=default
 Assignment operator. More...

RichPeak2Doperator= (RichPeak2D &&rhs) &=default
 Move Assignment operator. More...

RichPeak2Doperator= (const Peak2D &rhs)
 Assignment operator. More...

bool operator== (const RichPeak2D &rhs) const
 Equality operator. More...

bool operator!= (const RichPeak2D &rhs) const
 Equality operator. More...

- Public Member Functions inherited from Peak2D
bool operator== (const Peak2D &rhs) const
 Equality operator. More...

bool operator!= (const Peak2D &rhs) const
 Equality operator. More...

 Peak2D ()=default

 Peak2D (const PositionType &pos, const IntensityType in)
 Member constructor. More...

 Peak2D (const Peak2D &p)=default
 Copy constructor. More...

 Peak2D (Peak2D &&) noexcept=default
 Move constructor. More...

Peak2Doperator= (const Peak2D &rhs)=default
 Assignment operator. More...

Peak2Doperator= (Peak2D &&) noexcept=default
 Move assignment operator. More...

 ~Peak2D () noexcept=default
 Destructor. More...

IntensityType getIntensity () const

void setIntensity (IntensityType intensity)
 Sets data point intensity (height) More...

PositionType const & getPosition () const
 Non-mutable access to the position. More...

PositionTypegetPosition ()
 Mutable access to the position. More...

void setPosition (const PositionType &position)
 Mutable access to the position. More...

CoordinateType getMZ () const
 Returns the m/z coordinate (index 1) More...

void setMZ (CoordinateType coordinate)
 Mutable access to the m/z coordinate (index 1) More...

CoordinateType getRT () const
 Returns the RT coordinate (index 0) More...

void setRT (CoordinateType coordinate)
 Mutable access to the RT coordinate (index 0) More...

- Public Member Functions inherited from MetaInfoInterface
 MetaInfoInterface ()
 Constructor. More...

 MetaInfoInterface (const MetaInfoInterface &rhs)
 Copy constructor. More...

 MetaInfoInterface (MetaInfoInterface &&) noexcept
 Move constructor. More...

 ~MetaInfoInterface ()
 Destructor. More...

MetaInfoInterfaceoperator= (const MetaInfoInterface &rhs)
 Assignment operator. More...

MetaInfoInterfaceoperator= (MetaInfoInterface &&) noexcept
 Move assignment operator. More...

void swap (MetaInfoInterface &rhs)
 Swap contents. More...

bool operator== (const MetaInfoInterface &rhs) const
 Equality operator. More...

bool operator!= (const MetaInfoInterface &rhs) const
 Equality operator. More...

const DataValuegetMetaValue (const String &name) const
 Returns the value corresponding to a string, or DataValue::EMPTY if not found. More...

DataValue getMetaValue (const String &name, const DataValue &default_value) const
 Returns the value corresponding to a string, or a default value (e.g.: DataValue::EMPTY) if not found. More...

const DataValuegetMetaValue (UInt index) const
 Returns the value corresponding to the index, or DataValue::EMPTY if not found. More...

DataValue getMetaValue (UInt index, const DataValue &default_value) const
 Returns the value corresponding to the index, or a default value (e.g.: DataValue::EMPTY) if not found. More...

bool metaValueExists (const String &name) const
 Returns whether an entry with the given name exists. More...

bool metaValueExists (UInt index) const
 Returns whether an entry with the given index exists. More...

void setMetaValue (const String &name, const DataValue &value)
 Sets the DataValue corresponding to a name. More...

void setMetaValue (UInt index, const DataValue &value)
 Sets the DataValue corresponding to an index. More...

void removeMetaValue (const String &name)
 Removes the DataValue corresponding to name if it exists. More...

void removeMetaValue (UInt index)
 Removes the DataValue corresponding to index if it exists. More...

void addMetaValues (const MetaInfoInterface &from)
 function to copy all meta values from one object to this one More...

void getKeys (std::vector< String > &keys) const
 Fills the given vector with a list of all keys for which a value is set. More...

void getKeys (std::vector< UInt > &keys) const
 Fills the given vector with a list of all keys for which a value is set. More...

bool isMetaEmpty () const
 Returns if the MetaInfo is empty. More...

void clearMetaInfo ()
 Removes all meta values. More...

- Public Member Functions inherited from UniqueIdInterface
 UniqueIdInterface ()
 Default constructor - the unique id will be invalid More...

 UniqueIdInterface (const UniqueIdInterface &rhs)=default
 Copy constructor - copies the unique id. More...

 UniqueIdInterface (UniqueIdInterface &&rhs)=default
 Move constructor. More...

UniqueIdInterfaceoperator= (UniqueIdInterface const &rhs)=default
 Assignment operator - copies the unique id. More...

UniqueIdInterfaceoperator= (UniqueIdInterface &&) &=default
 Move Assignment operator - copies the unique id. More...

virtual ~UniqueIdInterface ()=default
 Destructor. More...

bool operator== (UniqueIdInterface const &rhs) const
 Equality comparison operator - the unique ids must be equal (!) More...

UInt64 getUniqueId () const
 Non-mutable access to unique id - returns the unique id. More...

Size clearUniqueId ()
 Clear the unique id. The new unique id will be invalid. Returns 1 if the unique id was changed, 0 otherwise. More...

void swap (UniqueIdInterface &from)

Size hasValidUniqueId () const
 Returns whether the unique id is valid. Returns 1 if the unique id is valid, 0 otherwise. More...

Size hasInvalidUniqueId () const
 Returns whether the unique id is invalid. Returns 1 if the unique id is invalid, 0 otherwise. More...

Size setUniqueId ()
 Assigns a new, valid unique id. Always returns 1. More...

Size ensureUniqueId ()
 Assigns a valid unique id, but only if the present one is invalid. Returns 1 if the unique id was changed, 0 otherwise. More...

void setUniqueId (UInt64 rhs)
 Assigns the given unique id. More...

void setUniqueId (const String &rhs)
 Mutable access to unique id. More...


Protected Attributes

QualityType quality_
 Overall quality measure of the feature. More...

ChargeType charge_
 Charge of the peptide represented by this feature. The default value is 0, which represents an unknown charge state. More...

WidthType width_
 Width (FWHM) for the feature. The default value is 0.0, a feature finding algorithm can compute this form the model. More...

std::vector< PeptideIdentificationpeptides_
 PeptideIdentifications belonging to the feature. More...

std::optional< IdentificationData::IdentifiedMoleculeprimary_id_
 primary ID (peptide, RNA, compound) assigned to this feature More...

std::set< IdentificationData::ObservationMatchRefid_matches_
 set of observation matches (e.g. PSMs) with IDs for this feature More...

- Protected Attributes inherited from Peak2D
PositionType position_ {}
 The data point position. More...

IntensityType intensity_ {}
 The data point intensity. More...

- Protected Attributes inherited from MetaInfoInterface
MetaInfometa_
 Pointer to the MetaInfo object (0 by default) More...

- Protected Attributes inherited from UniqueIdInterface
UInt64 unique_id_
 the unique id More...


Type definitions

Type of quality values

enum  AnnotationState {
  FEATURE_ID_NONE , FEATURE_ID_SINGLE , FEATURE_ID_MULTIPLE_SAME , FEATURE_ID_MULTIPLE_DIVERGENT ,
  SIZE_OF_ANNOTATIONSTATE
}
 state of identification, use getAnnotationState() to query it More...

typedef float QualityType

typedef Int ChargeType
 Type of charge values. More...

typedef float WidthType
 Type of feature width/FWHM (RT) More...

static const std::string NamesOfAnnotationState [SIZE_OF_ANNOTATIONSTATE]


Additional Inherited Members

- Public Types inherited from Peak2D
typedef float IntensityType
 Intensity type. More...

typedef double CoordinateType
 Coordinate type (of the position) More...

typedef DPosition< 2 > PositionType
 Position type. More...

enum  DimensionDescription { RT = 0 , MZ = 1 , DIMENSION = 2 }
 This enum maps the symbolic names of the dimensions to numbers. More...

- Public Types inherited from UniqueIdInterface
enum  { INVALID = 0 }
 This is the invalid unique id (cast it to a UInt64 if you like) More...

- Static Public Member Functions inherited from Peak2D
static char const * shortDimensionName (UInt const dim)
 Short name of the dimension (abbreviated form) More...

static char const * shortDimensionNameRT ()
 Short name of the dimension (abbreviated form) More...

static char const * shortDimensionNameMZ ()
 Short name of the dimension (abbreviated form) More...

static char const * fullDimensionName (UInt const dim)
 Full name of the dimension (self-explanatory form) More...

static char const * fullDimensionNameRT ()
 Full name of the dimension (self-explanatory form) More...

static char const * fullDimensionNameMZ ()
 Full name of the dimension (self-explanatory form) More...

static char const * shortDimensionUnit (UInt const dim)
 Unit of measurement (abbreviated form) More...

static char const * shortDimensionUnitRT ()
 Unit of measurement (abbreviated form) More...

static char const * shortDimensionUnitMZ ()
 Unit of measurement (abbreviated form) More...

static char const * fullDimensionUnit (UInt const dim)
 Unit of measurement (self-explanatory form) More...

static char const * fullDimensionUnitRT ()
 Unit of measurement (self-explanatory form) More...

static char const * fullDimensionUnitMZ ()
 Unit of measurement (self-explanatory form) More...

- Static Public Member Functions inherited from MetaInfoInterface
static MetaInfoRegistrymetaRegistry ()
 Returns a reference to the MetaInfoRegistry. More...

- Static Public Member Functions inherited from UniqueIdInterface
static bool isValid (UInt64 unique_id)
 Returns true if the unique_id is valid, false otherwise. More...

- Protected Member Functions inherited from MetaInfoInterface
void createIfNotExists_ ()
 Creates the MetaInfo object if it does not exist. More...

- Static Protected Attributes inherited from Peak2D
static char const *const dimension_name_short_ [DIMENSION]
 Short name of the dimension (abbreviated form) More...

static char const *const dimension_name_full_ [DIMENSION]
 Full name of the dimension (self-explanatory form) More...

static char const *const dimension_unit_short_ [DIMENSION]
 Unit of measurement (abbreviated form) More...

static char const *const dimension_unit_full_ [DIMENSION]
 Unit of measurement (self-explanatory form) More...


Detailed Description

A basic LC-MS feature.

This class represents a "minimal" feature, defined by a position in RT and m/z, intensity, charge, quality, and annotated peptides. Most classes dealing with features will use the subclasses Feature or ConsensusFeature directly. However, algorithms that rely on very general characteristics of features can use this class to provide a unified solution for both "normal" features and consensus features.

Member Typedef Documentation

◆ ChargeType

typedef Int ChargeType

Type of charge values.

◆ QualityType

typedef float QualityType

◆ WidthType

typedef float WidthType

Type of feature width/FWHM (RT)

Member Enumeration Documentation

◆ AnnotationState

state of identification, use getAnnotationState() to query it

Enumerator
FEATURE_ID_NONE
FEATURE_ID_SINGLE
FEATURE_ID_MULTIPLE_SAME
FEATURE_ID_MULTIPLE_DIVERGENT
SIZE_OF_ANNOTATIONSTATE

Constructor & Destructor Documentation

◆ BaseFeature() [1/7]

◆ BaseFeature() [2/7]

BaseFeature ( const BaseFeature feature)
default

Copy constructor.

◆ BaseFeature() [3/7]

BaseFeature ( BaseFeature &&  feature)
inlinenoexcept

Move constructor Note: can't be "noexcept = default" because of missing noexcept on some standard containers so we need to explicitly define it noexcept and provide an implementation.

◆ BaseFeature() [4/7]

BaseFeature ( const BaseFeature rhs,
UInt64  map_index
)

Copy constructor with a new map_index.

◆ BaseFeature() [5/7]

BaseFeature ( const Peak2D point)
explicit

Constructor from raw data point.

◆ BaseFeature() [6/7]

BaseFeature ( const RichPeak2D point)
explicit

Constructor from raw data point with meta information.

◆ BaseFeature() [7/7]

BaseFeature ( const FeatureHandle fh)
explicit

Constructor from a featurehandle.

◆ ~BaseFeature()

~BaseFeature ( )
override

Destructor.

Member Function Documentation

◆ addIDMatch()

void addIDMatch ( IdentificationData::ObservationMatchRef  ref)

add an ID match (e.g. PSM) for this feature

◆ clearPrimaryID()

void clearPrimaryID ( )

clear any primary ID that was assigned

◆ getAnnotationState()

AnnotationState getAnnotationState ( ) const

state of peptide identifications attached to this feature. If one ID has multiple hits, the output depends on the top-hit only

◆ getCharge()

const ChargeType& getCharge ( ) const

Non-mutable access to charge state.

◆ getIDMatches() [1/2]

std::set<IdentificationData::ObservationMatchRef>& getIDMatches ( )

mutable access to the set of matches (e.g. PSMs) with IDs for this feature

◆ getIDMatches() [2/2]

const std::set<IdentificationData::ObservationMatchRef>& getIDMatches ( ) const

immutable access to the set of matches (e.g. PSMs) with IDs for this feature

◆ getPeptideIdentifications() [1/2]

std::vector<PeptideIdentification>& getPeptideIdentifications ( )

returns a mutable reference to the PeptideIdentification vector

◆ getPeptideIdentifications() [2/2]

const std::vector<PeptideIdentification>& getPeptideIdentifications ( ) const

◆ getPrimaryID()

const IdentificationData::IdentifiedMolecule& getPrimaryID ( ) const

Return the primary ID (peptide, RNA, compound) assigned to this feature.

Exceptions
Exception::MissingInformationif no ID was assigned

◆ getQuality()

QualityType getQuality ( ) const

◆ getWidth()

WidthType getWidth ( ) const

Non-mutable access to the features width (full width at half max, FWHM)

◆ hasPrimaryID()

bool hasPrimaryID ( ) const

◆ operator!=()

bool operator!= ( const BaseFeature rhs) const

Inequality operator.

◆ operator=() [1/2]

BaseFeature& operator= ( BaseFeature &&  rhs) &
default

Move Assignment operator.

◆ operator=() [2/2]

BaseFeature& operator= ( const BaseFeature rhs)
default

Assignment operator.

◆ operator==()

bool operator== ( const BaseFeature rhs) const

Equality operator.

◆ setCharge()

void setCharge ( const ChargeType ch)

◆ setPeptideIdentifications()

void setPeptideIdentifications ( const std::vector< PeptideIdentification > &  peptides)

sets the PeptideIdentification vector

◆ setPrimaryID()

void setPrimaryID ( const IdentificationData::IdentifiedMolecule id)

set the primary ID (peptide, RNA, compound) for this feature

◆ setQuality()

void setQuality ( QualityType  q)

Set the overall quality.

◆ setWidth()

void setWidth ( WidthType  fwhm)

Set the width of the feature (FWHM)

◆ sortPeptideIdentifications()

void sortPeptideIdentifications ( )

sorts PeptideIdentifications, assuming they have the same scoreType.

◆ updateIDReferences()

void updateIDReferences ( const IdentificationData::RefTranslator trans)

Update ID references (primary ID, matches) for this feature.

This is needed e.g. after the IdentificationData instance containing the referenced data has been copied.

Member Data Documentation

◆ charge_

ChargeType charge_
protected

Charge of the peptide represented by this feature. The default value is 0, which represents an unknown charge state.

◆ id_matches_

std::set<IdentificationData::ObservationMatchRef> id_matches_
protected

set of observation matches (e.g. PSMs) with IDs for this feature

◆ NamesOfAnnotationState

const std::string NamesOfAnnotationState[SIZE_OF_ANNOTATIONSTATE]
static

◆ peptides_

std::vector<PeptideIdentification> peptides_
protected

PeptideIdentifications belonging to the feature.

◆ primary_id_

std::optional<IdentificationData::IdentifiedMolecule> primary_id_
protected

primary ID (peptide, RNA, compound) assigned to this feature

◆ quality_

QualityType quality_
protected

Overall quality measure of the feature.

◆ width_

WidthType width_
protected

Width (FWHM) for the feature. The default value is 0.0, a feature finding algorithm can compute this form the model.
